# Shared Relays

> Multi-tenant relays with authentication, higher rate limits, and predictable performance

Shared relays are multi-tenant relays run by n0.computer on infrastructure that
is separate from the [public relays](/iroh-services/relays/public). They sit
between the free public relays and fully [dedicated
relays](/iroh-services/relays/managed): you share a box with a small number of
other tenants instead of the entire internet.

## Why not the public relays

The public relays are rate-limited based on total traffic across every iroh user on them. When traffic is high or bursty, your application shares those limits with everyone else.

Shared relays:

* Run on separate infrastructure from the public relays, so they aren't affected by bursty traffic or DDoS attacks against them
* Have far fewer tenants per machine
* Have higher rate limits than the public relays
* Optional API key authentication, so only your applications can connect
* Provide more predictable performance

## What you get

For **\$19/month**:

* Four relays across the globe
* Up to 10,000 concurrent connections, then \$0.003 per additional endpoint per month
* 100 GB of relay egress per month, then \$0.09/GB
* A 5 MB/s rate limit
* API key authentication, so you can revoke access for endpoints as needed

Only traffic carried by a relay counts as relay egress. Direct peer-to-peer
traffic does not.

Authentication uses an endpoint-bound capability token signed locally with your
project API key. See [API Keys](/iroh-services/access#how-relay-authentication-works)
for how tokens and project-wide credentials differ.

Metrics are already included with the Pro plan: throughput, direct connection rates, relay usage, and rate limits. See [Metrics](/iroh-services/metrics/index).

## Free trial

The Pro plan includes a 30-day free trial.

## How to get shared relays

Sign up at [services.iroh.computer](https://services.iroh.computer?utm_source=docs\&utm_content=shared-relays)
and create a Pro project, or upgrade an existing project to Pro. Shared relays
are included with the plan.

## Configure your endpoint

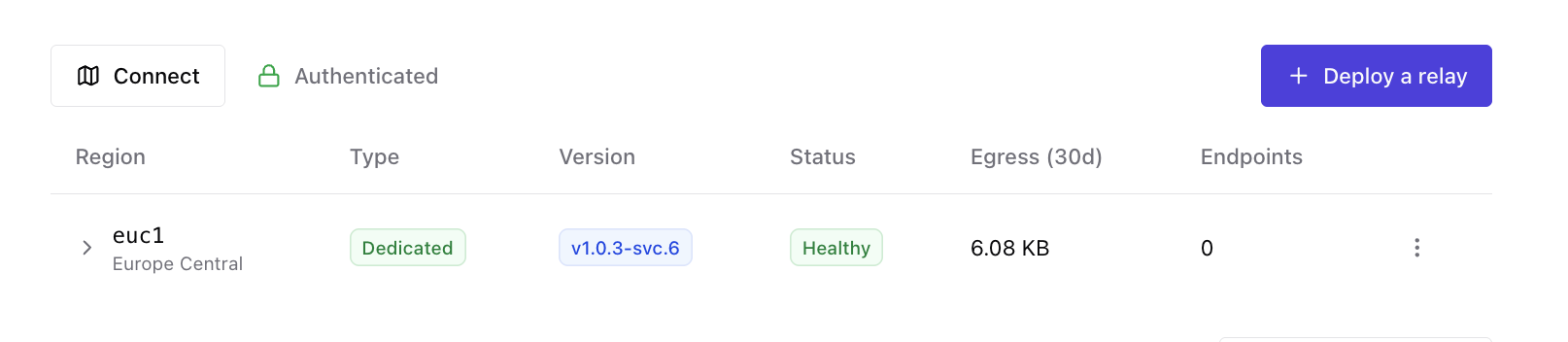

Click **Connect** in your project or in the relays section to get the
configuration for your endpoints.

<img src="https://mintcdn.com/number0/fCc3-LAMKNsA0nlG/images/relay-code-snippet.png?fit=max&auto=format&n=fCc3-LAMKNsA0nlG&q=85&s=c6b3d8c596283a1aecabe05596258922" alt="Relay code snippet" width="1614" height="352" data-path="images/relay-code-snippet.png" />

By default, your endpoint authenticates to Shared and Dedicated relays. The
iroh-services preset uses your project API key locally to mint a token bound to
the endpoint's Endpoint ID and scoped to relay use. The token expires after 30
days by default; the project API key is not sent to the relay. See [API
Keys](/iroh-services/access#how-relay-authentication-works) for details.

<CodeGroup>
  ```rust Rust theme={null}
  use iroh::Endpoint;
  use iroh_services;

  #[tokio::main]
  async fn main() -> anyhow::Result<()> {
      // Build a preset pointing at your dedicated relays, authenticated with
      // your project's API key. In production, load the key from a config file
      // or environment variable instead of hardcoding it.
      let preset = iroh_services::preset()
          .relays([
              "YOUR_RELAY_URL_US",
              "YOUR_RELAY_URL_EU",
          ])?
          .api_secret_from_str("YOUR_API_KEY")?
          .build()?;

      // Bind the endpoint with the preset, then wait until it's online to
      // confirm it has an authorized connection to a relay.
      let endpoint = Endpoint::bind(preset).await?;
      endpoint.online().await;

      Ok(())
  }
  ```

  ```python Python theme={null}
  import asyncio
  import iroh

  async def main():
      # Build a preset pointing at your dedicated relays, authenticated with
      # your project's API key. In production, load the key from a config file
      # or environment variable instead of hardcoding it.
      preset = iroh.preset_iroh_services(
          iroh.ServicesPresetOptions(
              relays=["YOUR_RELAY_URL_US", "YOUR_RELAY_URL_EU"],
              api_secret="YOUR_API_KEY",
          )
      )

      # Bind the endpoint with the preset, then wait until it's online to
      # confirm it has an authorized connection to a relay.
      ep = await iroh.Endpoint.bind(iroh.EndpointOptions(preset=preset))
      await ep.online()

  asyncio.run(main())
  ```

  ```swift Swift theme={null}
  import IrohLib

  // Build a preset pointing at your dedicated relays, authenticated with your
  // project's API key. In production, load the key from a config file or
  // environment variable instead of hardcoding it.
  let preset = try presetIrohServices(options: ServicesPresetOptions(
      relays: ["YOUR_RELAY_URL_US", "YOUR_RELAY_URL_EU"],
      apiSecret: "YOUR_API_KEY"
  ))

  // Bind the endpoint with the preset, then wait until it's online to confirm
  // it has an authorized connection to a relay.
  let ep = try await Endpoint.bind(options: EndpointOptions(preset: preset))
  await ep.online()
  ```

  ```kotlin Kotlin theme={null}
  import computer.iroh.*
  import kotlinx.coroutines.runBlocking

  fun main() = runBlocking {
      // Build a preset pointing at your dedicated relays, authenticated with
      // your project's API key. In production, load the key from a config file
      // or environment variable instead of hardcoding it.
      val preset = presetIrohServices(
          ServicesPresetOptions(
              relays = listOf("YOUR_RELAY_URL_US", "YOUR_RELAY_URL_EU"),
              apiSecret = "YOUR_API_KEY",
          ),
      )

      // Bind the endpoint with the preset, then wait until it's online to
      // confirm it has an authorized connection to a relay.
      val ep = Endpoint.bind(EndpointOptions(preset = preset))
      ep.online()
      ep.shutdown()
  }
  ```

  ```javascript JavaScript theme={null}
  import { Endpoint, presetIrohServices } from '@number0/iroh'

  // Apply a preset pointing at your dedicated relays, authenticated with your
  // project's API key. In production, load the key from a config file or
  // environment variable instead of hardcoding it.
  const builder = Endpoint.builder()
  presetIrohServices(builder, {
    relays: ['YOUR_RELAY_URL_US', 'YOUR_RELAY_URL_EU'],
    apiSecret: 'YOUR_API_KEY',
  })

  // In JavaScript, presets are functions applied to an `EndpointBuilder`, so use
  // `Endpoint.builder()` rather than `Endpoint.bind()` — `bind()` always applies the
  // n0 preset.

  // Bind the endpoint, then wait until it's online to confirm it has an
  // authorized connection to a relay.
  const ep = await builder.bind()
  await ep.online()
  ```
</CodeGroup>

On a free project, omit the relay URLs. Then, the preset will use the n0 public relays instead.

## Shared vs. Dedicated

Shared relays give you authentication, isolation from public traffic, and higher
rate limits at a low fixed price. Choose [Dedicated
Relays](/iroh-services/relays/managed) when you need single-tenant isolation,
[version locking](/iroh-services/relays/managed#version-locking), blue/green deployments, or custom regions. Choose Enterprise
when you need an SLA or multi-cloud deployment.
